TPO Waterproofing Membrane System

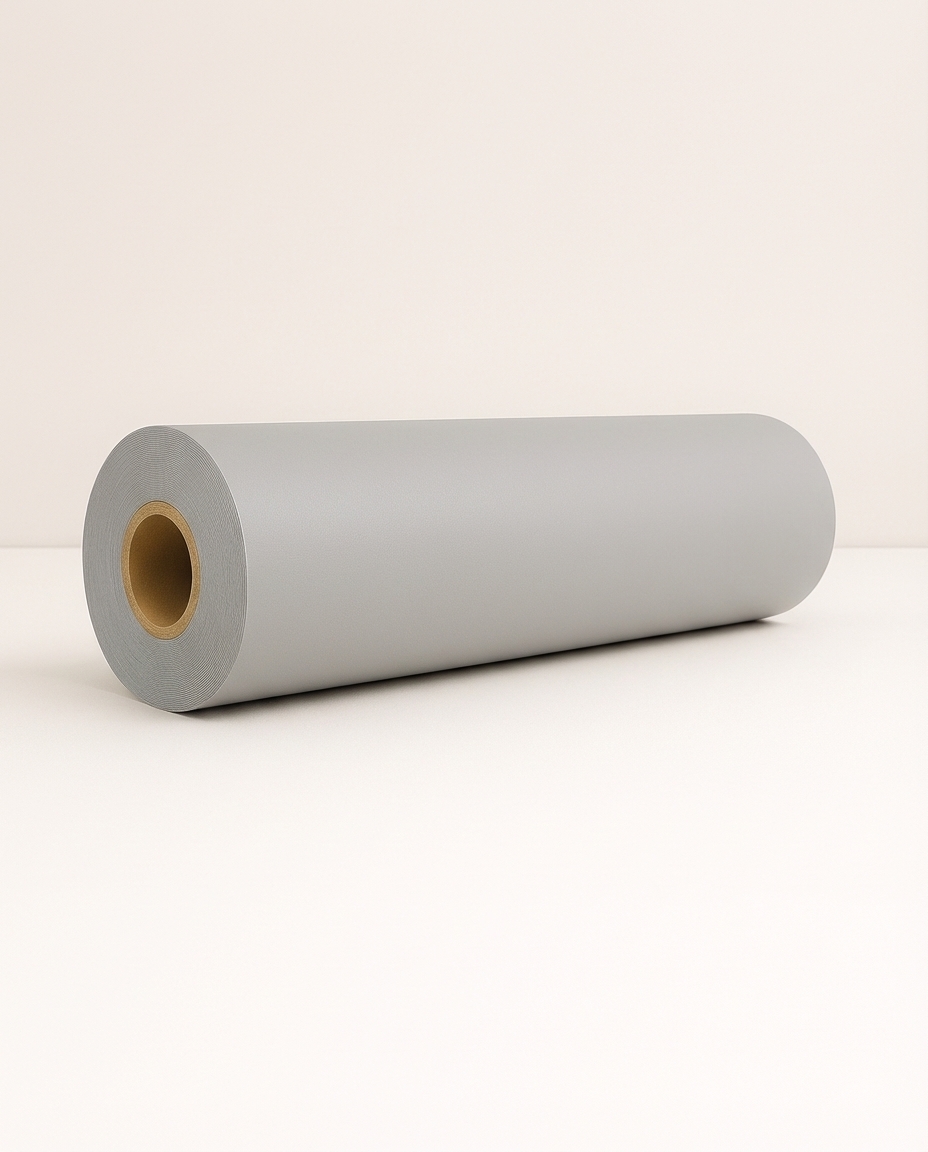

Heat‑weldable single‑ply TPO sheets (1.2–1.5 mm)
Single‑Ply Roofing That Seals and Reflects Heat
Large roof areas face repeated hot/cold and wet/dry cycles while requiring dependable watertightness and reduced heat gain.
TPO membranes address this with a factory‑made single‑ply sheet, strong puncture/tear resistance, and heat‑welded seam joints that form a continuous waterproofing layer.
How TPO Roof Membranes Are Installed
TPO sheets are laid over screed/PCC/RCC and other cementitious surfaces; the membrane typically has a textured white top surface with a contrasting bottom layer.

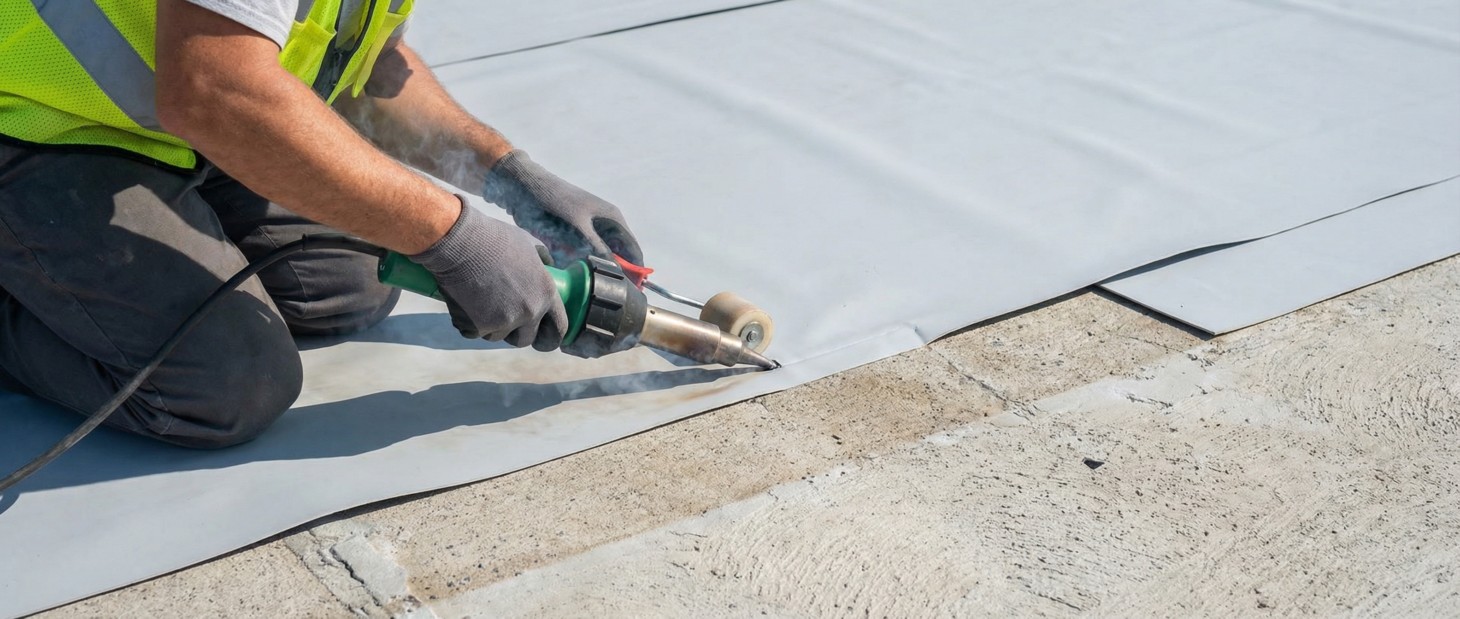

Seams and overlaps are fused using heat welding to create continuous joints; the process requires skilled execution and supervision to achieve consistent weld quality.
Fleece‑backed variants enable improved integration with the roof build‑up where specified, while maintaining the same heat‑welded joint principle.
Fleece‑Backed TPO
Heat‑Welded Seams
Performance at a Glance

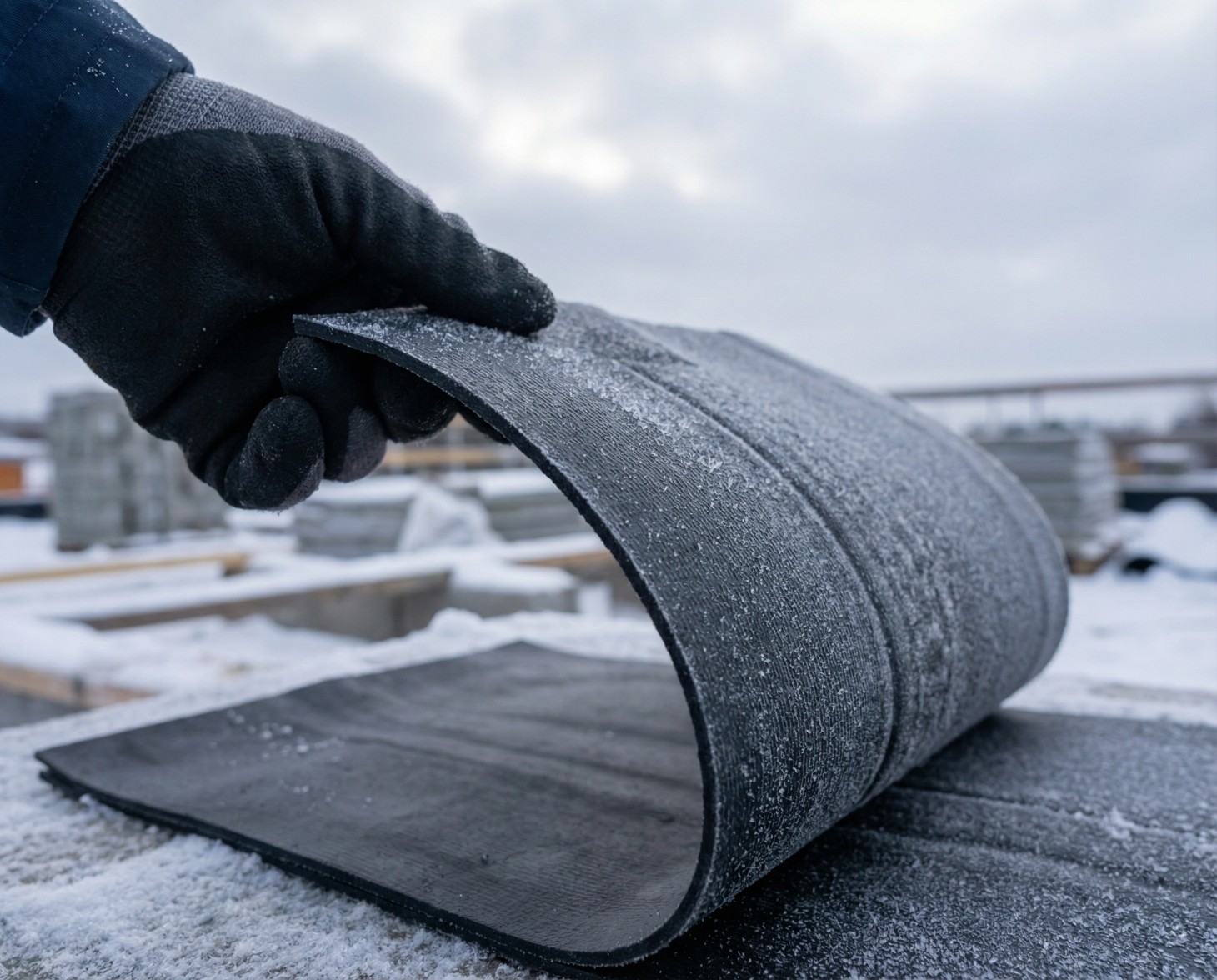

Weather & Temperature Cycling
Continuous serviceability −30°C to 100°C
Stays flexible through hot/cold cycles.

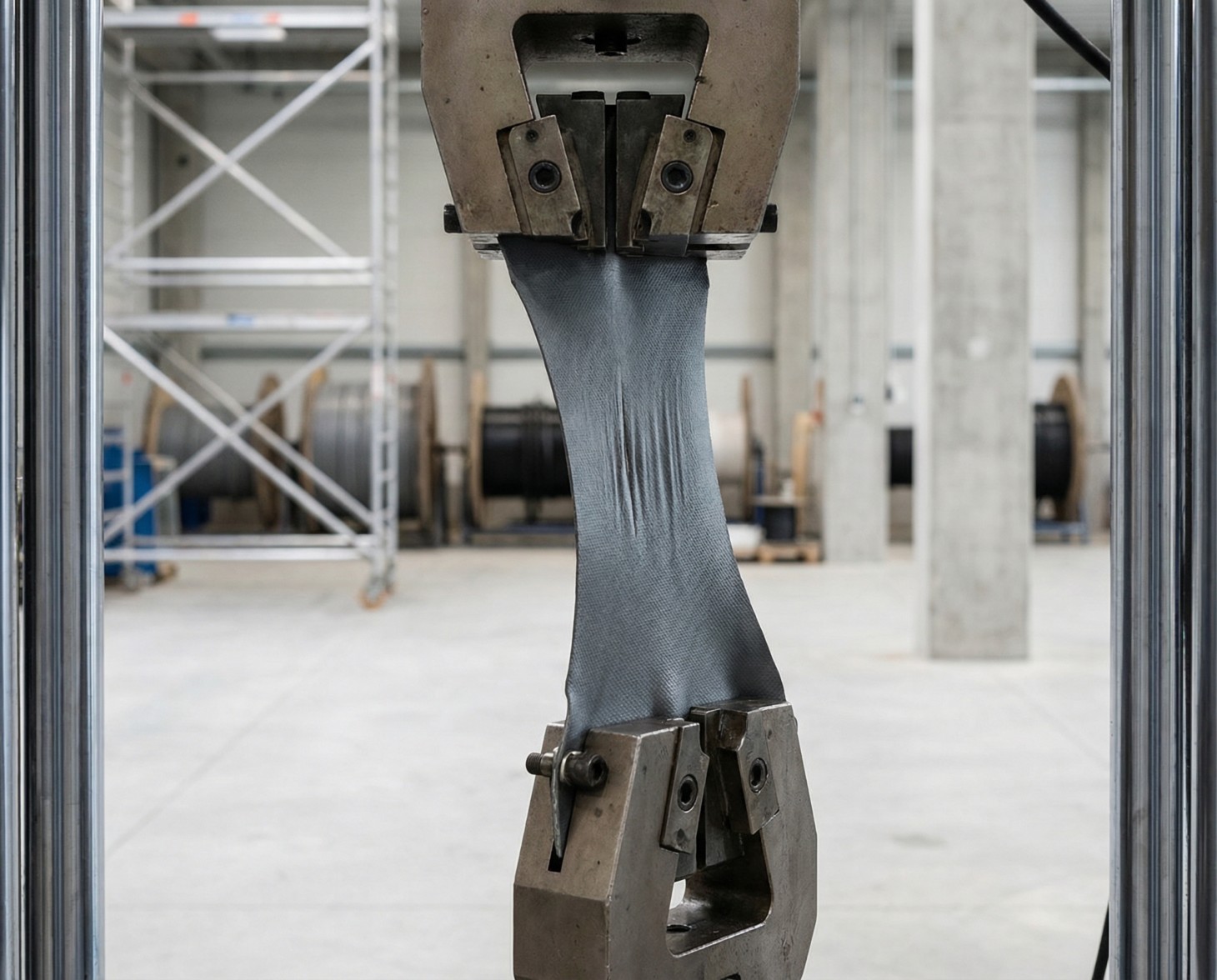

Tensile & Elongation
Tensile min 90–100; elongation min 550–600%
High stretch helps accommodate movement.
Puncture & Tear
Puncture min 175–220 N; tear min 45–50 N/mm
Resists damage from footfall and tools.

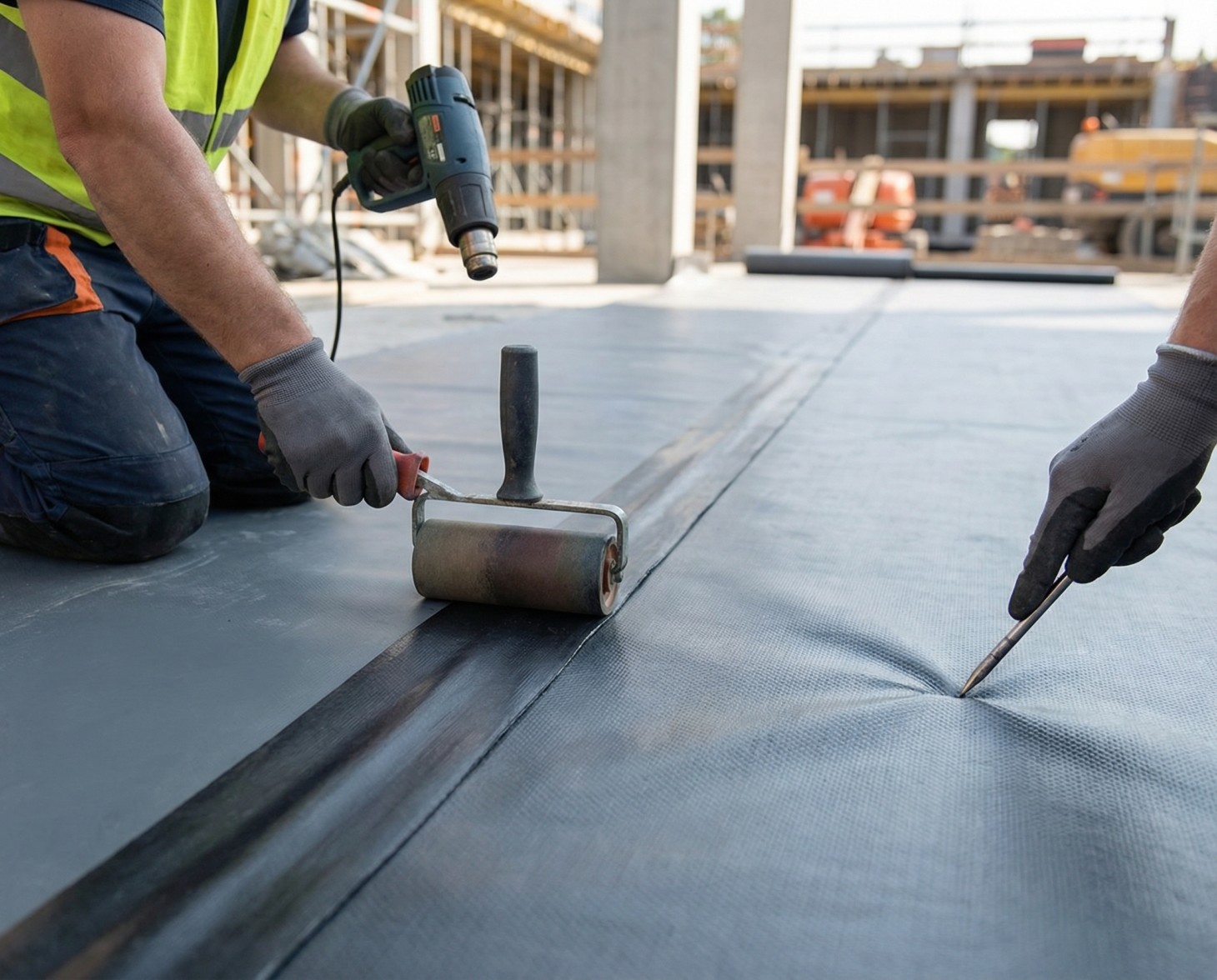

Seam Joint Integrity
Heat‑welded seams with high peel strength
Welded seams form a continuous barrier.
Where You’ll See the Impact
Industrial Roofing
Factory sheds, warehouses
Transport Hubs
Airports, transit stations
Cold Chain
Cold storages, utilities
Institutions
Malls, hospitals, schools
Residential
Homes, flat roofs
Green Roofing
Green roofs, podiums
Operational Wins

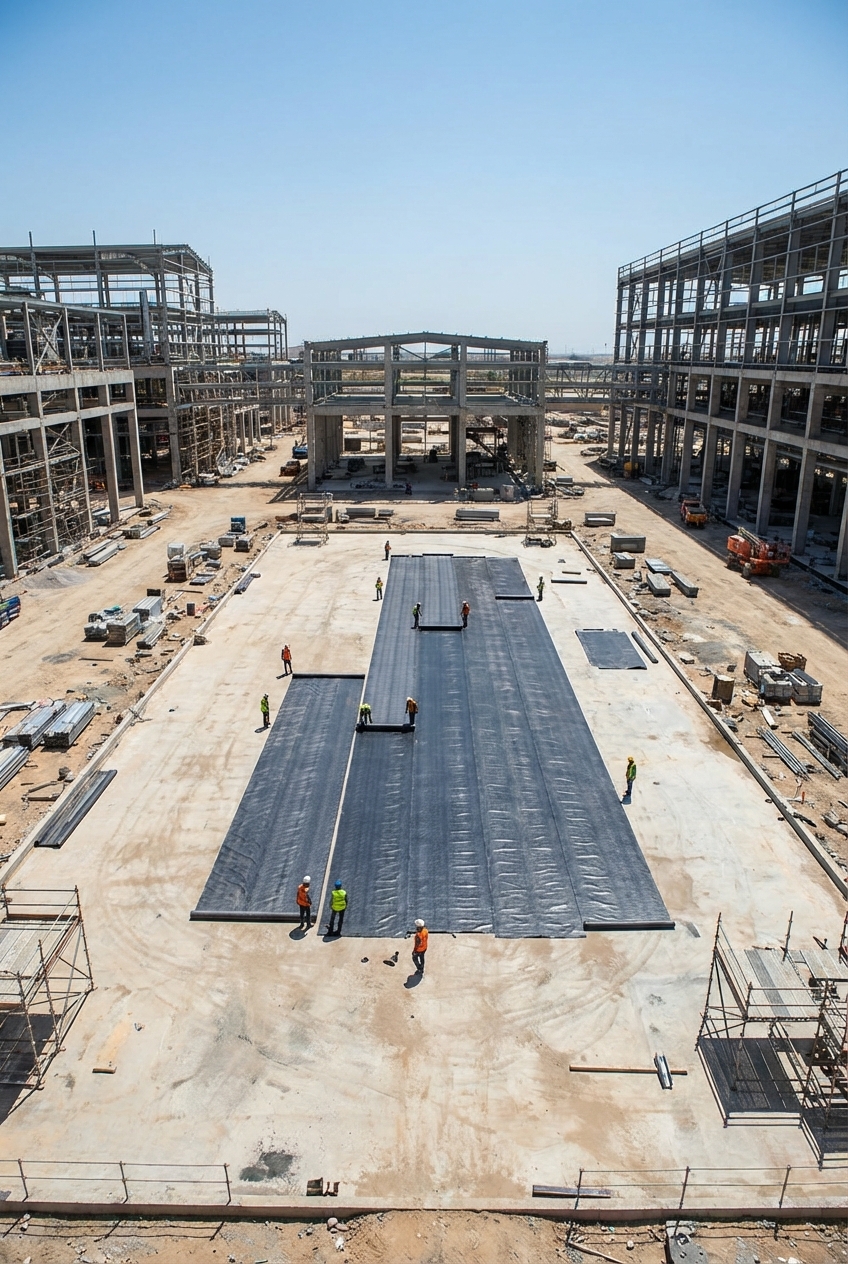

Factory‑made thickness
Preformed thickness reduces on‑site variation.
Fast seam sealing
Heat welding fuses joints into one layer.
Lower roof heat gain
White textured surface supports heat shielding.
Tougher roof durability
High puncture and tear resistance reduces damage.
